Acon Enterprise-Valves

AIR VAVES

ITEM: AIR VALVE
VALVE CASING: ASTM A48, A126
TRIM: ASTM A276, ASTM B26
TYPES: AUTOMATIC, KINETIC, COMBINATION AIR VALVE
SIZES: 1/2" TO 8" ABOVE ON DEMAND
PRESSURE: 0 TO 16BAR OR 300Psi
END: BSP/NPT, THR, SOCKET WELD, FLANGE
SOURCE: LOCAL, CHINA, USA,

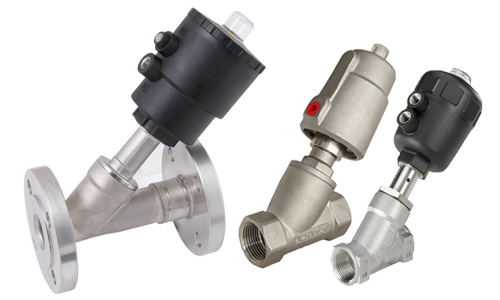

ANGLE VALVE

ITEM NAME: ANGLE SEAT VALVE
SIZES: 3/8" TO 2"
MATERIAL: STIANLESS STEEL 316, BROZE
FUNCTION: SINGLE OR DOUBLE ACTING
TEMP: -10 TO +50 C
PRE: 3BAR TO 8BAR
VOLTS: 24V, 110V, 120V, 220V
CONNECTION: NPT, BSP, SOCKET WELD
END: ANSI, PN
SOURCES: CHINA, USA

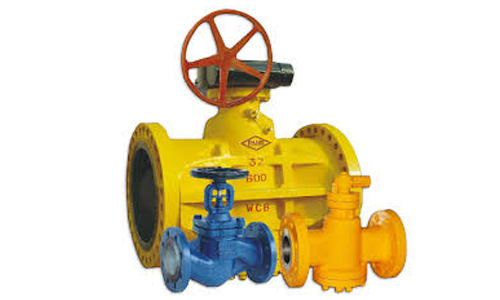

AUDCO PLUG VALVE

ITEM NAME: PLUG VALVE
DESIGN: API 6D, API 6A
DIMENSIONl]: FLANGE TO ANSI/ASME B16.5, B16.34
BODY MATERIAL: A216 Gr.WCB
SIZES: 1.1/2" TO 8" ABOVE ON DEMAND
PRESSURE RATING: 150 TO 2500 CLASS
FIRE TEST: API 6FA
TYPES: LUBRICATED, NON-LUBRICATED, ECCENTRIC, DBB
PATTERN: SHORT, REGULAR, VENTURI
END: FLANGE
SOURCES: LOCAL, CHINA, EU

BALL VALVE

ITEM NAME: BALL VALVE
DESIGN: API 6D
DIMENSION: ANSI B16.34, ANSI B 16.5, ANSI B16.25, ANSI B16.10
SIZE: 1/2" TO 36"
CLASS: 150, 300, 600, 900, 1500, 2500, PN16, PN40, PN80
TYPES: FLOATIING, TRUNNION, SIDE ENTRY VS TOP ENRTY, 3WAY, F
TEST"S : API API 6FA, API 607, API 598, API 6D
END: BUTTWEL, THREADED, FLANGE
HANDWHEEL: CI, DI OR CS
DESIGN: OUTSIDE SCREW & YOKE (OS&Y), BOLTED BONNET
OPERATION: MANUAL,GEAR,PNEUMATIC/HYDRAULIC/ELECRIC ACTUATION
SOURCES: CHINA, USA, EU

BUTTERFLY VALVE

ITEM NAME: BUTTERFLY VALVE
DESIGN: API 609
SIZE: 2" TO 60"
CLASS: 150, 300, 600, 900, 1500, 2500, PN16, PN40, PN80
TYPES:CONCENTRIC, DOUBLE VS TRIPLE ECENTRIC
END: WAFER, LUG, SEMI LUG, DOUBLE FLANGED
HANDWHEEL: CI, DI OR CS
OPERATION: LEVER,GEAR,PNEUMATIC/HYDRAULIC/ELECRIC ACTUATION
FACE TO FACE DIMENSIONS: ANSI B16.34
VALVE TESTING: API 598
SOURCES ORIGIN: CHINA, USA, EU

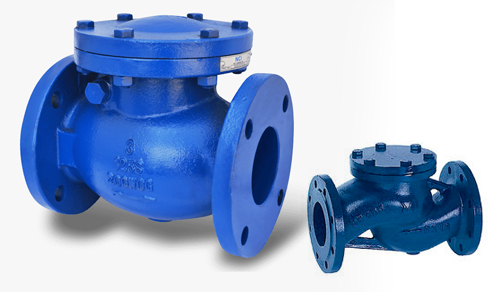

CHECK VALVE

NAME: CHECK VALVE
DESIGN: API 6D, API 594
BODY: ASTM A216 WCB, ASTM A105
DIMENSION: ASTM E446/E186, ASTM A609
SIZE: 2" TO 36"
CLASS: 150, 300, 600, 900, 1500, 2500, PN16, PN40, PN80
TYPES: SWING, BALL, CLAPET, WAFER, PISTON ETC
END: BUTTWELD, THREADED, FLANGE
HANDWHEEL: CI, DI OR CS
DESIGN: OUTSIDE SCREW & YOKE (OS&Y), BOLTED BONNET
OPERATION: MANUAL,GEAR,PNEUMATIC/HYDRAULIC/ELECRIC ACTUATION
VALVE TESTING: API 598
SOURCES ORIGIN: LOCAL, CHINA, USA, EU

CONTROL VALVE

ITEM NAME: CONTROL VALVE
STANDARDS: SA216, WCB, SA217, WC6, SA351CF8, SA35CF8M
SIZE: DN32-DN100
TYPES: SINGAL OR DOUBLE SEATS, GLOBE, BALANCE & LOW NOISE CAGE
POWER: PNEUMATIC, ELECTRIC
END: FLANGE, BUTT WELD
POSITIONER: ANALOG & DIGITIAL
SOURCES ORIGIN: CHINA, USA

FORGED VALVE

NAME: FORGED VALVES
DESIGN: API 602 B16.34, NACE MR0175 ON DEMAND
MATERIAL: A105, A350 LF2, 316/304SS
SIZES: 1/2" TO 3"
CLASS: 150 TO 2500
TYPES: GATE, GLOBE, BALL, CHECK
TEST: API 598
STEM: RISING, NON-RISING
END: THREADED, SOCKETWELD, BUTTWELD & FLANGE TYPE
SOURCE: CHINA, USA, EU

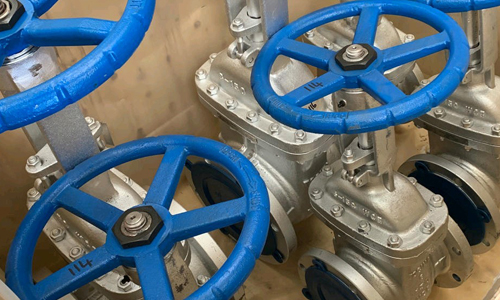

GATE VALVE

NAME: GATE VALVE
DESING: API 600, API 602, API 603 IS 780, BS 14846
MATERIAL: ASTM A216 Gr WCB, ASTM A105, ASTM 182 Gr F304/F316, ASTM 351 Gr CF8/CF8M
SIZES: 1" TO 24" ABOVE ON DEMAND
CLASS: ASA 125, 150, 300, 600, 900, 1500, 2500, PN10, PN16, PN40 & OTHERS
TYPES: SOLID TAPER WEDGE, FLEXIBLE WEDGE, SPLIT WEDGE
TEST: API 598
STEM: RISING & NON-RISING
END: THREADED, SOCKETWELD, BUTTWELD, FLANGE
SOURCES: LOCAL, CHINA, USA, EU

GLOBE VALVE

NAME: GLOBE VALVE
DESIGN: API 600, API 602, & OTHERS
MATERIAL: A216 Gr WCB, A105N, ASTM 351 Gr CF8/CF8M
SIZE: 1/2" TO 16" ABOVE ON DEMAND
CLASS: 125, 150. 300, 600, 900, 1500, 2500, PN10, PN16, PN40 & OTHERS
TYPE: Z, Y, & ANGLE TYPE
TEST: API 598
END: THREADED, SOCKETWELD, BUTTWELD, FLANGE
SOURCES: LOCAL, CHINA, USA, EU

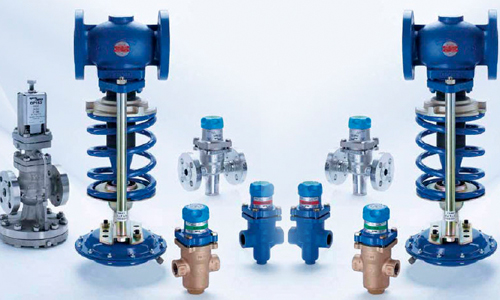

PRV VALVE

ITEM: PRESSURE RELIEFE & REDUCE VALVE (PRV)
MATERIAL: ASTM A536, ASTM A216-WCB, INS 87850
SIZE: 1/2" TO 16"
PRESSURE CLASS: B16.42, B16.5, B16.24
ADJUSTMENTS & CRACKS: 2 TO 30 & 150 T0 600 PSI
TYPES: PILOT, PNEUMATICALLY, DIRECT ACTING
END: THREADED, FLANGE
SOURCES : CHINA, USA, EU

SAFETY VALVE

ITEM: SAFETY VALVE
DESIGN: API 526
MATERIAL: WCB, CF8M, WC6, LCB
SIZE: 1" TO 12"
PRESSURE: 150n to 2500LB
END: DIN EN, ANSI/ASME
TYPE: SPRING LOADED, DEAD WEIGHT, PILOT OPERATED
SOURCES ORIGIN: CHINA, USA, EU

STAINER

ITEM NAME: STRAINERS
MATERIAL: ASTM A105, ASTN A234WPB, SS 316, DUPLEX
SIZES: 2" TO 24"
TEMP: -20 TO 180 C
PRESSURE: PN16, 150# & OTHERS
TYPES: T-TYPES, Y-TYPES
END: BSP/NPT, ANSI, DIN,OTHERS ON REQUEST
SOURCES ORIGIN: LOCAL, CHINA, USA

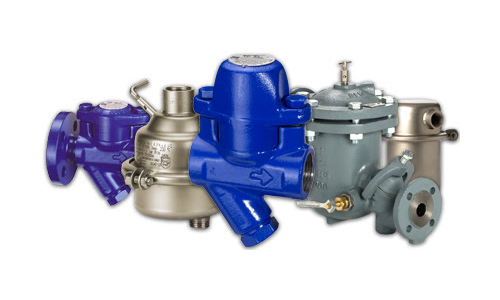

STEAM TRAP

ITEM NAME: STEAM TRAP
SIZES: 1/2" TO 2"
MATERIALS:ASTM A105, ASTM A216 Gr.WCB, SS, AISI304, ASTM A193Gr.B7
TYPES: THERMODYNAMIC, FREE FLOAT BUCKET & BALL TYPE
END: SCREWED(NPT/BSPT/BSP), SOCKET WELD & FLANGE TYPE
SOURCES ORIGIN: LOCAL, TURKEY, CHINA, USA

Valves Variety
